3,000-Unit Balcony Solar Water Heater Case in Shandong China
3,000-Unit Balcony-Mounted Solar Water Heater Deployment for Xuefu Garden, Zoucheng
A community-scale rollout of 8cm-thin flat-plate balcony solar systems across 3,000 households — 3.37 million kWh saved annually, 524 tons CO₂ cut, CNY 500 saved per household per year. 10+ years of stable operation since 2014.
Project Background

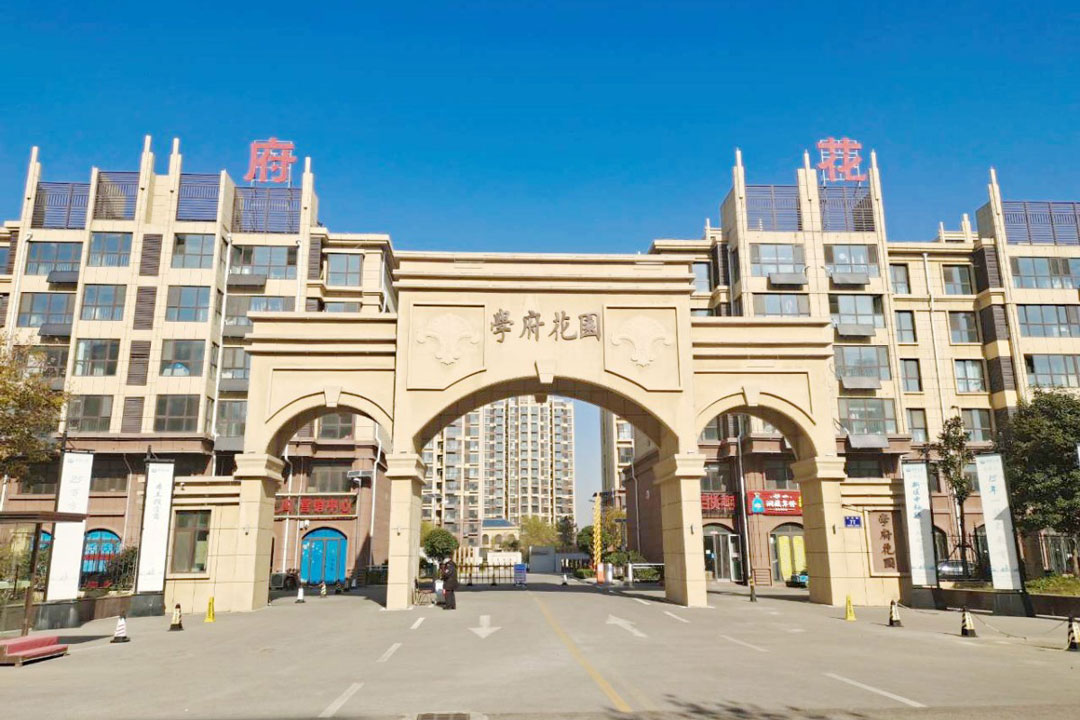

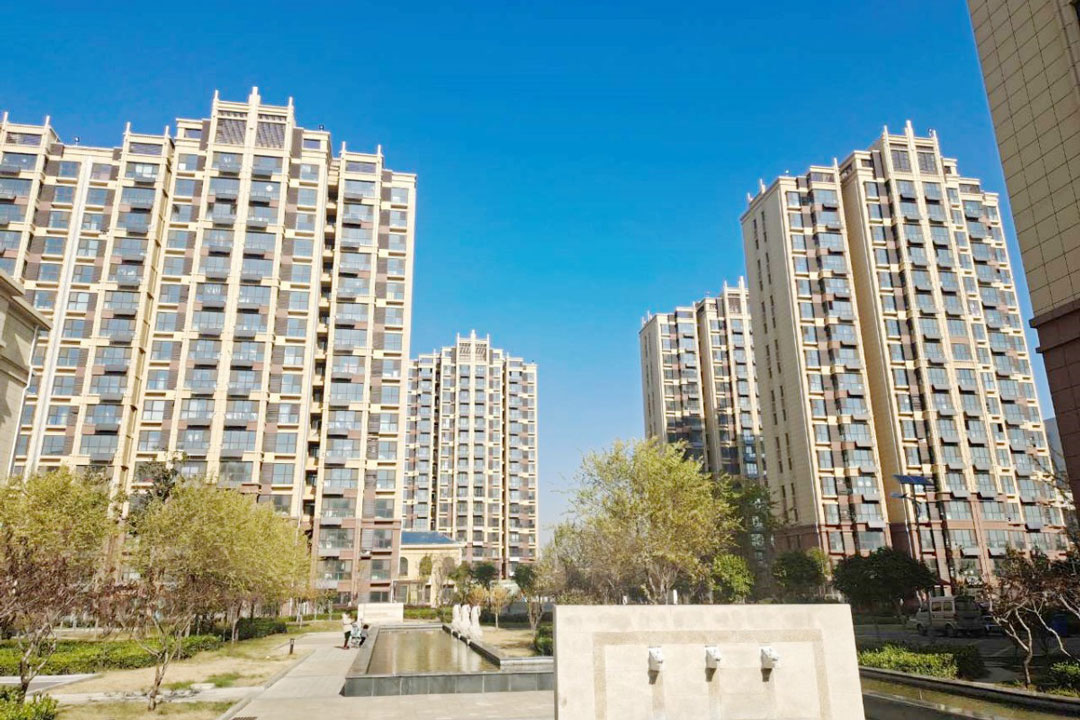

Xuefu Garden is a 3,000-unit residential community in Zoucheng (Jining, Shandong) developed under China's 2014 green building policy push. The developer required a hot water solution that worked across multiple apartment layouts, integrated visually with the building facade, and could be deployed at full community scale without compromising owner-by-owner control. After multiple vendor evaluations, SOLETKS was selected as the core equipment supplier for a community-wide balcony-mounted solar water heater rollout.
Why this case matters for residential developers and EPCs: Centralized community solar systems suffer from long pipe runs, heat loss, and unit-level metering complexity. Per-household balcony systems eliminate these issues — but only if the product is thin enough, efficient enough, and visually integrated enough to satisfy the developer, the building code, and the homeowner simultaneously. This project demonstrates a working answer at 3,000-unit scale.
The Challenges
Large-scale residential solar deployment fails on four predictable issues. The Xuefu Garden specification addressed each before equipment selection.
Installation space constraint
Apartment balconies offer limited installable surface. Standard solar collectors (typically 12–15cm thick) either conflict with railings or visually protrude. The project required a profile under 10cm to fit cleanly on balcony railings and walls across multiple unit types.
Facade aesthetic requirement
Traditional reflective collectors break the building's architectural language. Developers and homeowner associations routinely reject installations that look like industrial equipment bolted onto a residential facade.
Centralized system limitations
Community-level centralized solar systems suffer pipe heat loss, complex unit-level metering, and shared maintenance failure modes. One pump or tank failure affects hundreds of households simultaneously.
3,000-unit operational risk
Deploying and maintaining 3,000 individual systems requires a service model that scales — not just an installation contract. Without a dedicated maintenance team, post-handover failure rates make the whole project look like a liability.
Solution Overview
SOLETKS delivered a customized balcony-mounted flat-plate solar system with an integrated "collector + storage tank" architecture, sized and styled to match the developer's building specification. The deployment was paired with a dedicated community-level operations team, treating the 3,000 units as a long-term service portfolio rather than a one-time equipment sale.
8cm-thin integrated collector
Flat-plate design at only 8cm thickness mounts cleanly on balcony railings or exterior walls. The matte coating finish blends with the building facade, removing the visual conflict that typically blocks developer approval.
Per-household ownership and control
Each household operates an independent system: own collector, own tank, own controller, own electric backup. No shared failure modes, no community-level metering, no inter-unit billing complexity.
High-absorption coating for variable irradiance
Proprietary selective coating delivers 94%+ solar absorption. Heat collection stays stable through Zoucheng's autumn and winter irradiance fluctuation, where commodity coatings drop output sharply.
Community-dedicated O&M team
SOLETKS established an on-site operations team for Xuefu Garden post-handover: scheduled inspections, fast-response repairs, and consolidated reporting to the property management. This is what allows 3,000 units to stay operational over 10+ years.
System Configuration (Per Household)
Integrated balcony-mounted flat-plate collector with SOLETKS proprietary selective absorption coating. Matte facade-matched finish. Mounts on railing or exterior wall.
Food-grade 304 stainless steel inner tank with 50mm polyurethane foam insulation. Designed for 24-hour temperature retention to support all-day household hot water demand.
Anti-leakage, anti-dry-burn, and anti-freeze protection integrated at the controller level. Required for safe deployment at 3,000-unit residential scale.
Auto-activates anti-freeze function in Zoucheng's winter low temperatures. Backup electric heating ensures hot water availability during multi-day cloudy stretches.
Before vs After
The community baseline assumed electric or gas water heating per household — the standard pre-2014 solution for residential developments in Shandong. The deployed balcony solar systems achieve the savings and emission reductions below across the full 3,000-unit community.
| Metric | Electric/Gas Baseline | Balcony Solar (Deployed) | Community-Wide Impact |
|---|---|---|---|
| Annual electricity per household | ~1,200+ kWh (water heating) | Backup-only consumption | ~1,100 kWh saved/unit |
| Annual electricity cost per household | ~CNY 600+ | Marginal | ~CNY 500 saved/yr/unit |
| Community-wide annual electricity saving | — | — | 3.37 million kWh/yr |
| Annual CO₂ emission (community) | High baseline | Low (backup only) | 524 t reduced/yr |
| Annual dust emission (community) | Elevated | Near zero | 7 t reduced/yr |
| Facade integration | N/A (in-unit appliance) | Matte-coated, flush mount | Aesthetic-compliant |
| Hot water availability | Wait time, fluctuation | Instant, 24-hour | User experience ↑ |
Performance Results
Operator-reported annual performance across the full 3,000-unit deployment. The ecological equivalents follow Chinese ecology ministry conversion factors.
"Each household gets clean hot water the moment they turn on the faucet — no waiting, no fluctuation. The neatly arranged solar collectors have become part of the community's identity. Across 3,000 units, the operation has stayed stable for over a decade."
Planning a residential community solar hot water rollout? Get a per-unit quote and deployment plan in 24 hours.
Request a Quote →Engineering Takeaways for Community-Scale Projects
Four lessons from Xuefu Garden apply directly to any residential project above 500 units — particularly developer-led builds where facade aesthetics and per-household control matter as much as energy performance.
Per-unit beats centralized at scale
For communities above 500 units, distributed per-household systems eliminate long-pipe heat loss, simplify metering, and isolate failure modes. The "one tank breaks, hundreds suffer" risk of centralized systems is the single biggest hidden cost.
Collector profile decides developer approval
The 8cm profile is not just a spec — it's the threshold that determines whether a solar product gets accepted by the developer's design review. Anything over 10cm typically fails facade approval. Specify thin, match the facade, win the project.
O&M is the product, not the equipment
3,000 systems operational for 10+ years is not an equipment quality story — it's an operations story. Dedicated community-level service teams turn one-time equipment sales into long-term reference projects. Build the O&M model into the quote, not as an afterthought.
Anti-freeze must be intelligent, not manual
3,000 households will not manually drain pipes before winter. Intelligent electric auxiliary anti-freeze activation is the only viable solution for community-scale deployment in any region with sub-zero winter lows.
FAQ
Why balcony-mounted instead of rooftop centralized for a 3,000-unit community?
Three reasons. First, per-household control eliminates inter-unit billing and metering complexity. Second, balcony installation removes long pipe runs and the associated heat loss. Third, individual failure isolation — when one system needs maintenance, only that household is affected, not hundreds.
Can the 8cm flat-plate system fit all balcony types?
Yes. The thin profile mounts on standard balcony railings (clamp or bracket installation) or exterior walls. The matte-finish coating is engineered to match common building facade colors, avoiding developer-side aesthetic rejection.
What is the payback period per household?
With CNY 500 annual electricity saving per household against an electric water heater baseline, payback typically falls within 5–7 years. Over the 10+ year service life, each household realizes net savings of CNY 3,500–5,000+ depending on tariff trajectory.
How does the system handle winter freezing in Shandong?
The system includes intelligent electric auxiliary heating with auto-activated anti-freeze function. When pipe temperature approaches freezing, the controller activates heating to prevent pipe rupture. No manual seasonal intervention required from the homeowner.
Is this design exportable to overseas residential developments?
Yes. The balcony-mounted flat-plate design is well-suited to apartment-dense markets — including Southeast Asia, Middle East, Mediterranean Europe, and Latin America. SOLETKS supplies the system under OEM and turnkey arrangements for developer and EPC clients in 60+ countries.
