Solar Power Hot Water System

1.Break the "only roof installation" restriction, solve the installation problem of high-rise residential buildings and sloping roof buildings;

2.The indoor heat storage environment makes the heat loss coefficient <5W/℃, which reduces the heat loss by 60% compared with outdoor installation;

3.Modular design supports synchronous construction with the building to meet the requirements of green building star certification.

Contact Now E-Mail Telephone WhatsApp

Product Details

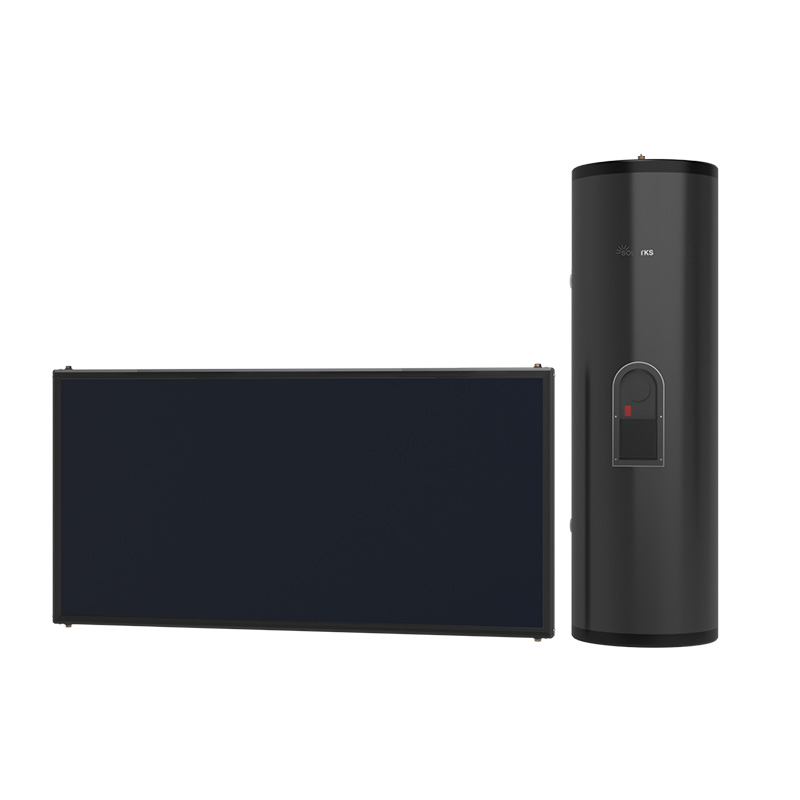

In the hot water solution of multi-storey houses and villas, the solar split water heater solves the traditional installation pain point with "separate design":

When the collector receives sufficient sunlight on the roof, the heat transfer medium continuously delivers thermal energy to the indoor water tank. —— This 'external heat collection, internal heat storage' design not only avoids the safety risks associated with concentrated roof load-bearing but also reduces heat loss through an insulated indoor environment. Especially in winter, the split structure, combined with a freeze-resistant medium circulation system, improves energy efficiency by 30% compared to traditional all-in-one units, making it an ideal choice for high-end residences that prioritize both architectural aesthetics and functional compatibility.

System advantages:

Break the "only roof installation" restriction, solve the installation problem of high-rise residential buildings and sloping roof buildings;
The indoor heat storage environment makes the heat loss coefficient <5W/℃, which reduces the heat loss by 60% compared with outdoor installation;
Modular design supports synchronous construction with the building to meet the requirements of green building star certification.

Applicable scene

Villa water heating project

Differentiated comparison

Compare dimensions	Traditional all-in-one machine	Solar split water heater
Installation layout	The heat collection and water storage are installed at the top	The collector is placed at the top and the water tank is flexibly placed in the room
Architecture impacts	The roof bears heavy pressure	Decentralized load-bearing, suitable for a variety of building structures
environmental suitability	It is easy to freeze and crack in low temperature	Indoor water storage + medium anti-freezing, -20℃ stable operation
Beauty and fusion	Exposure of equipment affects the appearance of the building	The water tank is installed in a hidden way to improve the integrity of the building

Flat Plate Solar Collector

Collector	BTE2.0-2
Overall area(m²)	2
Aperture area(m²)	1.87
L x W x H (mm)	2000x1000x80
Rated working pressure	0.6bar
Optical performance	78%
Absorber sheet	Al, highly selective absorption coating
Frame	Aluminium

Stainless Steel Water Tank

Model	300	500	800	1000
Collector	BTE-2.0(×3)	BTE-2.0(×4)	BTE-2.0(×8)	BTE-2.0(×10)
Length (mm)	1740	1845	1720/1820	2000/2100
Inner Diameter (mm)	Φ480	Φ580	Φ800	Φ800
Outer Diameter (mm)	Φ580	Φ700	Φ900/1000	Φ900/1000
Insulation	PU foam 60mm		PU foam 50/100mm
Inner tank material	SUS304 /SUS316 L
Outer tank material	Colour-coated sheet
Working pressure	7 bar
Electrical heating element	220V 1500W~3000W / 110V 1500W
Coil pipe material	Optional（copper/sus304/sus316）
Coil size	Φ12*1.0mm
Heat exchange coil	None/Bottom coil/Upper coil and Bottom coil
Expension tank	12L	24L	50L	50L

Workstation

	Input	Pump	Rated power	Controller	Dimension(mm)
SR21H	AC220V/110V，50Hz	Grundfos 15-65 130	60-100W	SR258	450x300x160
TSCEN-6	AC220V/110V，50Hz	Wilo ST20/11	165w	FTC-6	270x460x160
