Flat Plate Solar Energy Collector

1. Just 50mm thick, saving up to 38% in shipping cost/volume

2. 35kg/m³ polyurethane foam for superior heat retention

3. High solar absorption: α = 95% ±2% (@AM1.5)

4. Elegant architectural integration with metallic gray aluminum frame

Contact Now E-Mail Telephone WhatsApp

Product Details

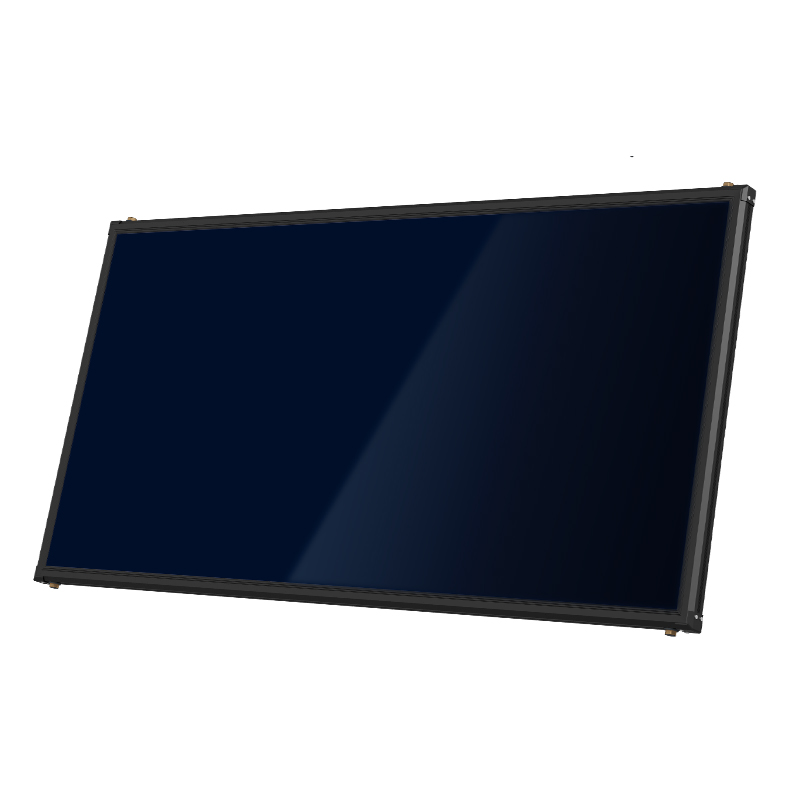

Ultra-Slim Flat Plate Solar Collector

This ultra-thin solar thermal collector offers both aesthetic integration and technical performance. With a 50mm profile, it reduces transport volume by 38% and maintains excellent thermal insulation using high-density polyurethane foaming. Featuring high-absorption blue film technology and a sleek architectural appearance, it's ideal for compact, modern installations.

Key Features:

Just 50mm thick, saving up to 38% in shipping cost/volume
35kg/m³ polyurethane foam for superior heat retention
High solar absorption: α = 95% ±2% (@AM1.5)
Elegant architectural integration with metallic gray aluminum frame

Specifications:

Coating: Blue film
Dimensions: 2021×1021×50 mm
Aperture Area: 1.9 m²
Operating Pressure: 0.6 MPa
Connector: G1/2 Internal Thread ×4
Frame Color: Metallic Gray (Aluminum Profile S10)

Technical Specifications

Coating	Dimensions (mm)	Aperture Area (m²)	Working Pressure (MPa)	Connector Size	Number of Connectors	Frame / Color
Blue Film	2021×1021×50	1.9	0.6	G1/2 Internal Thread	4	Aluminum Profile S10 / Metallic Gray
