Details Of The Solar Hot Water Project In Kunming Dianzhong New Area Medical Industrial Park
90 Tons/Day Solar Hot Water System for the Dianzhong Medical Industrial Park, Kunming
An 800+ m² flat plate solar thermal array with gas auxiliary heating supplies centralized 55–60°C hot water across outpatient blocks, inpatient wards, and staff dormitories — cutting gas consumption by 21,000 m³ and CO₂ emissions by 56 tons per year while reducing park hot water costs by roughly 30%.
Project Background
The Dianzhong New Area is a national-level development zone in Yunnan Province with medical and health care designated as a strategic emerging industry. Its Medical Industrial Park houses outpatient clinics, inpatient wards, medical staff dormitories, and supporting service facilities — all of which require continuous, temperature-stable hot water at hospital-grade standards. The park operator committed to "green, low-carbon, efficient" infrastructure at the planning stage, which ruled out a gas-only or electric-only hot water baseline.
Kunming's climate makes the technical case straightforward: 2,400+ annual sunshine hours put it in one of China's better solar irradiation zones. The engineering question was not whether solar thermal could carry the base load — it was how to combine it with a gas auxiliary in a way that holds 55–60°C at every tap without exception, because a medical park cannot tolerate the temperature drift that a residential system might accept. Background on sizing medical hot water systems is in our guide on solar hot water systems for hospitals: stable supply, hygiene control, backup design.
Client Challenges
Four constraints defined the specification envelope for a medical park deployment.
Medical-Grade Temperature Stability
Ward hygiene, patient care, and preliminary equipment disinfection all require stable 55–60°C at the tap. Temperature drift below 55°C creates biofilm and Legionella risk; above 60°C creates scald risk. The tolerance band is narrow and non-negotiable.
Continuous 24/7 Load Across Diverse Users
Inpatient wards, outpatient blocks, dormitories, and disinfection stations all draw hot water on different curves. The system must serve 1,500 patients + 700 staff without cross-user demand collision or morning-peak pressure drops.
Kunming Winter Overcast Risk
Kunming's overall solar resource is strong, but winter brings extended rainy and overcast stretches. Solar-only sizing would either be dramatically oversized or fail to hold setpoint — neither is acceptable at hospital operating standard.
Construction Interference With Live Medical Operations
The park was already operating during construction. Roof and rooftop plant work, pipe routing, and commissioning testing all had to be sequenced around active outpatient hours without disrupting patient flow.
Solution Overview
The design pairs 800+ m² of high-efficiency flat plate solar collectors as the primary heat source with a gas auxiliary that automatically activates when the solar loop drops below 50°C. Under clear-sky conditions the solar fraction exceeds 75%; across the full year it averages above 70%. Gas is not the primary fuel — it is the setpoint insurance layer that makes solar-first dispatch defensible for a medical facility. See our flat plate solar collector product hub for the base collector line.
Flat Plate Solar as Primary Heat Source

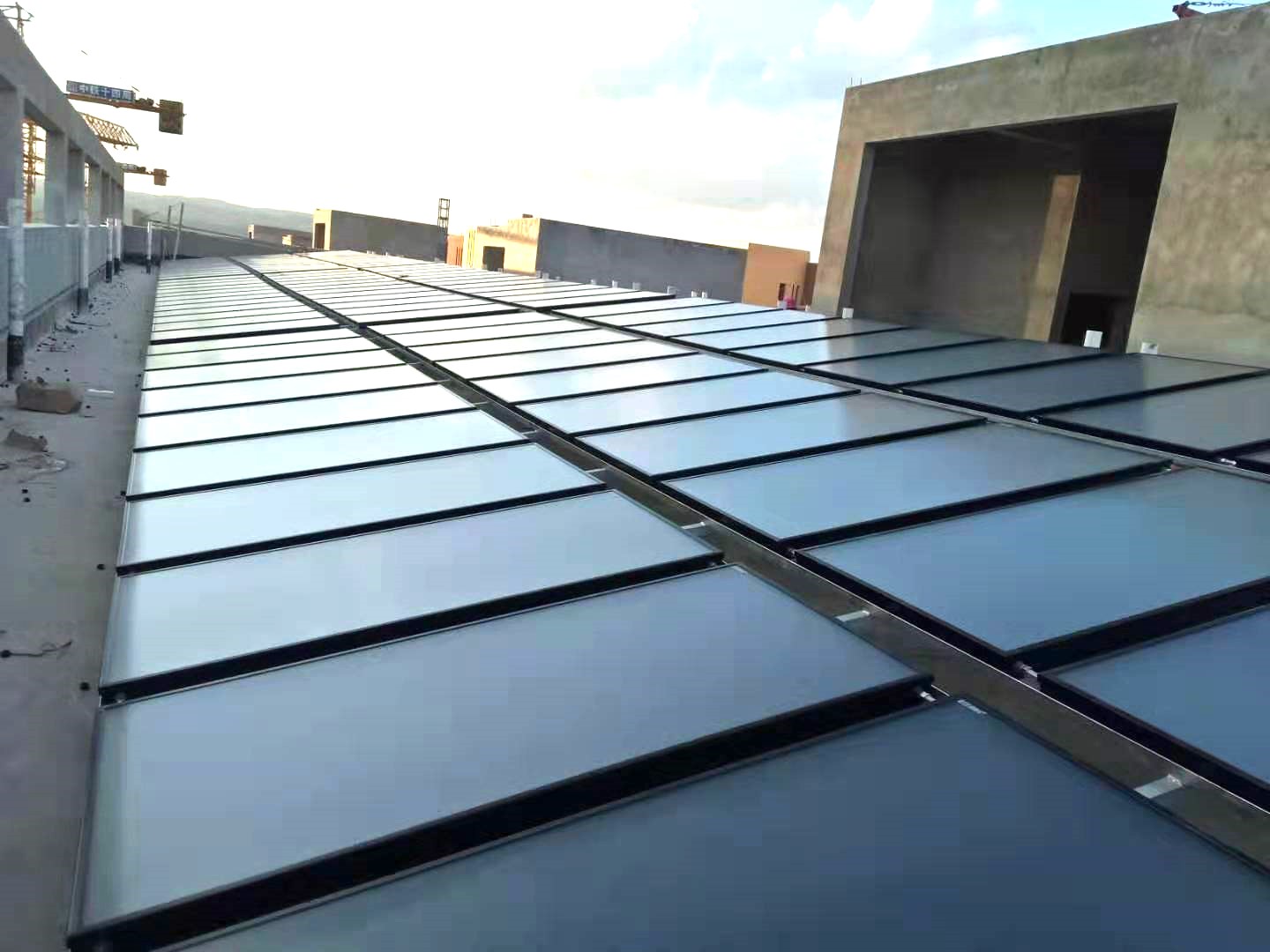

800+ m² of high-efficiency flat plate collectors mounted at 30° inclination — calibrated to Kunming's latitude for peak annual absorption. Selective absorber coating for stable output across diffuse-light winter conditions.
Gas Auxiliary With 50°C Setpoint Trigger
Automatic activation when the solar loop cannot hold 50°C outlet temperature. Guarantees 55–60°C delivery at every tap regardless of weather. The auxiliary runs only when needed — solar carries the majority of annual load.
Polyurethane Insulated Distribution
Long distribution runs across the park use polyurethane insulated pipes with FRP protective jacket. Heat loss during transport minimized — critical when serving multiple buildings from a centralized plant.
Intelligent Remote Monitoring & Fault Alert
Tank water level, temperature, and collector operating status monitored in real time on backend dashboard. Fault early-warning triggers remote alert before service interruption — cuts O&M cost and keeps hot water continuity intact.
System Configuration
Before vs After Comparison
Benchmarked against the gas-only baseline the park would otherwise have deployed for a 90-ton/day medical hot water load.
| Metric | Gas-Only Baseline | Solar + Gas Auxiliary (Deployed) | Improvement |
|---|---|---|---|
| Primary Heat Source | Natural gas (100%) | Solar primary + gas auxiliary | Renewable-first dispatch |
| Solar Fraction of Annual Load | 0% | >70% | +70+ percentage points |
| Annual Gas Consumption | Baseline | Baseline − 21,000 m³ | −21,000 m³/yr |
| Hot Water Supply Cost | Baseline | Baseline − ~30% | −30% OPEX |
| Annual CO₂ Emissions | Baseline | Baseline − 56 tons | −56 t CO₂/yr |
| Delivery Temperature Stability | Stable | Stable 55–60°C at tap | Medical-grade band preserved |
| Remote Monitoring / Fault Alert | Manual inspection | Real-time dashboard + alerts | Lower O&M cost, faster response |
Performance Results
Measured across annual operating data since commissioning in June 2020.
Client Feedback
"The solar loop carries most of the load through the year, and the gas auxiliary only fires on winter overcast weeks. We have not had a single hot water complaint from the wards since commissioning. The remote dashboard means the O&M team spots any drift before it reaches a nurse or a patient — which is the only measure that matters here."
Planning hot water infrastructure for a hospital, medical park, or public health facility? Get a load-profile-based sizing outline, or explore our solar thermal distribution partnership if you deliver healthcare-sector EPC projects.
Request a Similar Quote →Key Takeaways for Similar Projects
Four engineering and program-level lessons transfer directly to other hospital and medical park hot water deployments.
Design Against the 55–60°C Band, Not the Daily Average
Medical hot water sizing must be constrained by outlet temperature tolerance, not by kWh yield targets. A 50°C dispatch trigger for the auxiliary is aggressive enough to preserve solar fraction, conservative enough to never let the tap drop below 55°C. See how to size a commercial solar hot water system for hotels and hospitals for the full methodology.
Insulate the Distribution — Or the Plant-Room Efficiency Gets Wasted
In a park deployment with long pipe runs between plant and buildings, uninsulated or under-insulated distribution can lose 5–10°C between plant outlet and end tap. Polyurethane insulation with FRP jacketing is not an optional upgrade at this scale — it is the difference between design and delivered performance.
Build the Remote Monitoring In From Day One
Hospital facilities teams are stretched. Fault detection through manual inspection cycles is too slow for medical service standards. Real-time dashboard + auto-alert is not a "smart building" add-on — it is core infrastructure that pays back in avoided service incidents within 12 months.
Sequence Construction Around Live Operations
Retrofit and expansion projects for operating medical facilities cannot follow greenfield schedules. Zoned, off-peak construction protects patient flow and staff productivity — the extra scheduling cost is trivial compared to disrupting outpatient throughput.
Frequently Asked Questions
What is the payback period for a medical park solar hot water system?
At ~30% hot water OPEX reduction and 20+ year collector service life, most medical hot water retrofits recover the incremental investment in 5–8 years, depending on local gas price and subsidy structure. The full calculation methodology is in our data-driven payback breakdown for commercial solar hot water systems.
How is Legionella and biofilm risk managed at 55–60°C delivery?
The 55–60°C delivery band is set specifically to stay above the Legionella proliferation zone (below 50°C) while remaining below scald threshold (above 60°C). Periodic thermal shock cycles at 65–70°C are programmed into the system controller for tank sterilization. Distribution loop return temperature is monitored to catch cold spots that could harbor biofilm.
Why flat plate rather than evacuated tube for a medical application?
At 55–60°C target temperature, flat plate delivers competitive annual yield in temperate irradiation zones like Kunming with better long-term durability and lower O&M cost than evacuated tube. Evacuated tube starts to win only above 70°C target. See our comparison of flat plate vs evacuated tube collectors.
Can the system be expanded as the park adds new medical facilities?
Yes. The plant-room architecture and control system were sized with 30% headroom for future expansion. Adding collector area, storage capacity, and distribution loops is a modular upgrade that does not require redesigning the core plant. Modular expansion is the standard approach for growing medical parks.
Does SoletkSolar handle overseas hospital and medical park projects?
Yes. The same design principles apply to hospitals and health facilities across Southeast Asia, the Middle East, Latin America, and Sub-Saharan Africa, where solar irradiation is typically stronger than Kunming and the economics are more favorable. Product specification is adjusted for local water quality, minimum design temperature, and regional medical codes.
