Balcony Solar Water Heaters for 2,968 Resettlement Homes in Jingzhou, China (Case Study)
Balcony-Mounted Solar Water Heaters for a 2,968-Household Resettlement Project in Jingzhou
100 L balcony water heaters bring clean, stable hot water to high-rise resettlement homes — saving about 800 kWh and cutting roughly 640 kg of CO₂ per household each year.
Location
Jingzhou, Hubei, China
Application
Resettlement housing domestic hot water
System Type
Balcony-mounted solar water heater
Scale
2,968 households · 100 L per unit
Lead Community
Swan Castle Community
Client Type
State-owned developer (Gezhouba Group)
Background: Clean Hot Water for a Livelihood Housing Project

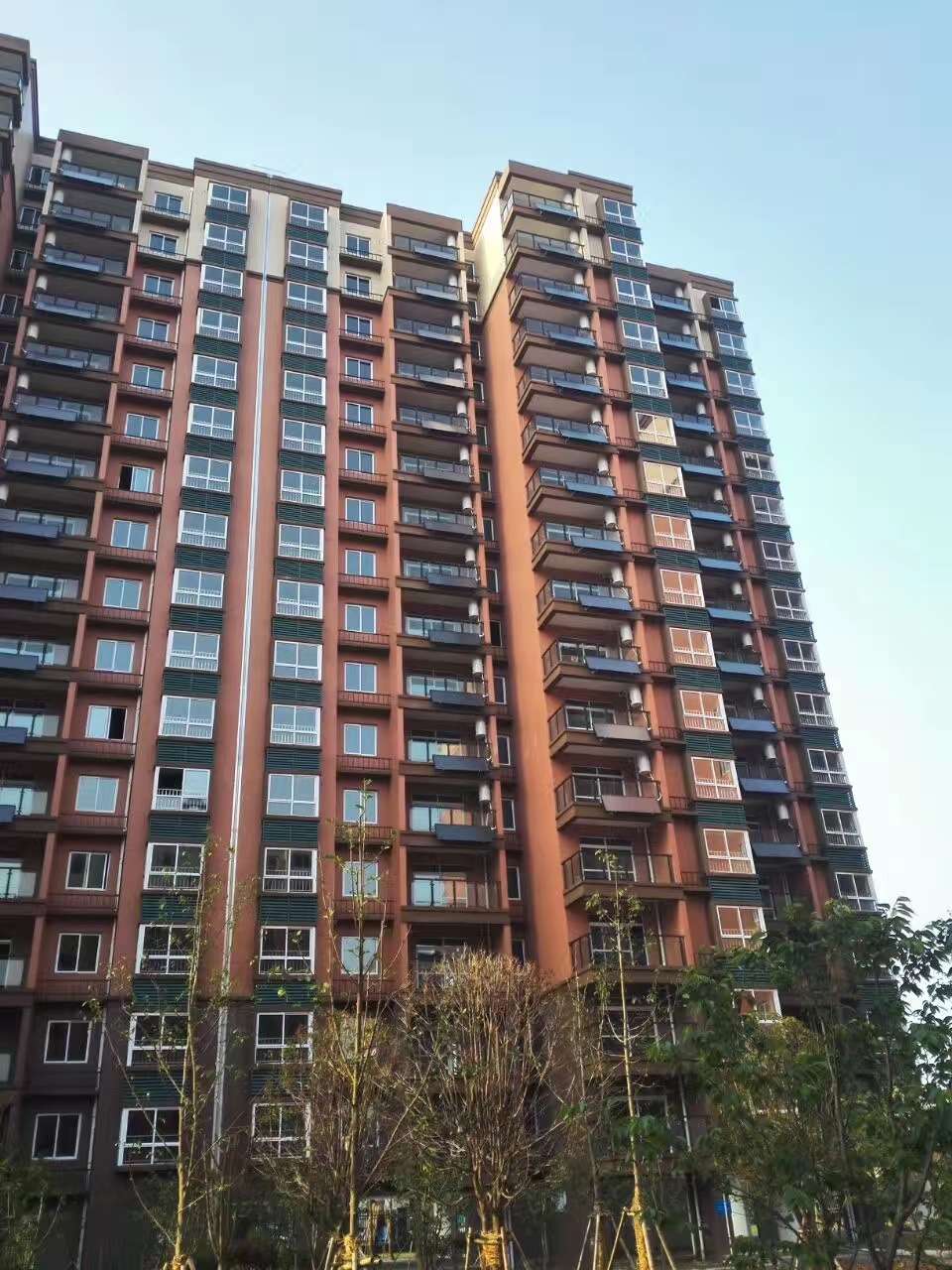

The Jingzhou Resettlement Housing Project is a key livelihood program by Hubei Gezhouba Group, built to give relocated residents a livable, comfortable home. Across three communities serving 2,968 households, the project added a supporting balcony-mounted solar water heater scheme, with Swan Castle Community among the first to benefit.
The challenge was specific: deliver stable, affordable hot water to families living in high-rise buildings where roof space is too limited for a conventional centralized solar array. Traditional electric and gas heaters added recurring cost and the familiar pain points of small capacity and slow heat-up.
Each home received a 100 L balcony-mounted unit — a capacity sized for everyday washing, laundry, and kitchen use without the waiting time of an undersized heater.
The Challenges
Outfitting thousands of high-rise apartments with solar hot water raises constraints that a single-family product never has to solve.
No roof space per household
High-rise resettlement buildings cannot give each of 2,968 households a share of roof area for a centralized array.
Recurring energy cost
Electric and gas heaters carried ongoing bills that strained the budgets of relocated households.
Weak winter sun and frost risk
Jingzhou's autumn and winter bring weaker sunlight and occasional sub-zero spells that threaten pipe freezing.
Safety in dense housing
Equipment installed on family balconies must be safe against leakage, dry-heating, and freeze damage.
Solution Overview
The balcony-mounted design solves the space problem at its root: each unit mounts on the balcony's external wall instead of competing for roof area. That makes it the natural fit for high-rise resettlement and affordable housing, where per-household roof allocation is impossible.
Wall-mounted, no roof needed
Each heater installs on the balcony external wall, adapting cleanly to high-rise layouts without occupying shared roof space.
Efficient vacuum heat collection
High-efficiency vacuum heat collection tubes with a special coating absorb solar energy effectively, holding output even under Jingzhou's weak autumn-winter sun.
Multi-layer safety
Anti-leakage, anti-dry-heating, and anti-freezing protection address the safety expectations of dense family housing.
Anti-freeze circulation
A built-in anti-freeze circulation system prevents pipe freezing and cracking during occasional winter cold, supporting year-round reliable operation.
System Configuration (Per Household)
Balcony Solar Water Heater
100 L capacity · balcony external-wall mounting · sized for family washing, laundry and kitchen use
Heat Collection
High-efficiency vacuum heat collection tubes · special absorber coating for weak-light conditions
Safety Protection
Anti-leakage · anti-dry-heating · anti-freezing protection
Freeze Protection
Built-in anti-freeze circulation system for occasional sub-zero winter weather
Installation
No roof space required · suited to high-rise resettlement building layouts
Project Scale
2,968 households across three communities · Swan Castle Community first
Before vs After (Per Household)
The change is easiest to see at the single-home level, where the unit replaces an electric heater's bills and limitations.
| Indicator | Before (Electric) | After (Balcony Solar) | Improvement |
|---|---|---|---|
| Energy source | Grid electricity / gas | Solar + minimal backup | Clean conversion |
| Annual electricity | Baseline | ~800 kWh less | Per-household saving |
| Annual CO₂ | Baseline | ~640 kg less | Direct reduction |
| Capacity / wait time | Small, slow heat-up | 100 L stable supply | No waiting |
| Installation footprint | Indoor / roof dependent | Balcony wall only | No roof space used |
2,968
Households served (project)
100 L
Capacity per household
800 kWh
Electricity saved / household / year
640 kg
CO₂ cut / household / year
Outfitting an apartment or affordable-housing project? Get a balcony solar water heater spec for high-rise builds.
Request a Similar QuoteKey Takeaways for High-Rise & Affordable Housing
For developers and procurement teams equipping apartments where roof space is scarce, this project offers a clear template.
Balcony mounting beats roof scarcity
Wall-mounted units sidestep the core obstacle of high-rise solar — no per-household roof allocation needed.
Size capacity to real household use
A 100 L unit matched daily washing, laundry, and kitchen demand without oversizing cost or undersizing comfort.
Freeze protection is non-negotiable
Even in milder regions like Jingzhou, anti-freeze circulation prevents pipe cracking during occasional cold snaps.
Standardize for mass rollout
One repeatable per-household unit lets a developer equip thousands of homes while controlling cost and installation.
Frequently Asked Questions
Why balcony-mounted instead of a centralized rooftop system?
High-rise buildings cannot give every household a share of roof space. Balcony-mounted units install on the external balcony wall, giving each apartment its own system without competing for roof area — the right fit for resettlement and affordable housing.
Is a 100 L heater enough for a family?
Yes. The 100 L capacity was sized for everyday family use — washing, laundry, and kitchen cleaning — providing stable hot water without the small-capacity, slow-heat-up problems of many electric and gas heaters.
How does it perform in winter and weak sunlight?
The unit uses high-efficiency vacuum heat collection tubes with a special coating that absorbs solar energy effectively even under Jingzhou's weaker autumn-winter sun, backed by an anti-freeze circulation system for cold spells.
How much does each household save?
Replacing an electric water heater saves about 800 kWh of electricity and roughly 640 kg of CO₂ per household per year. Actual figures vary with usage, local electricity prices, and irradiance.
Can this model be replicated in other housing projects?
Yes. The standardized balcony-mounted unit is a replicable model for resettlement housing, affordable housing, and apartment developments where roof space is limited but per-household hot water is required.
