Ningxia Zhongwei Fuxingyuan Community Wall Mounted Solar Hot Water Project

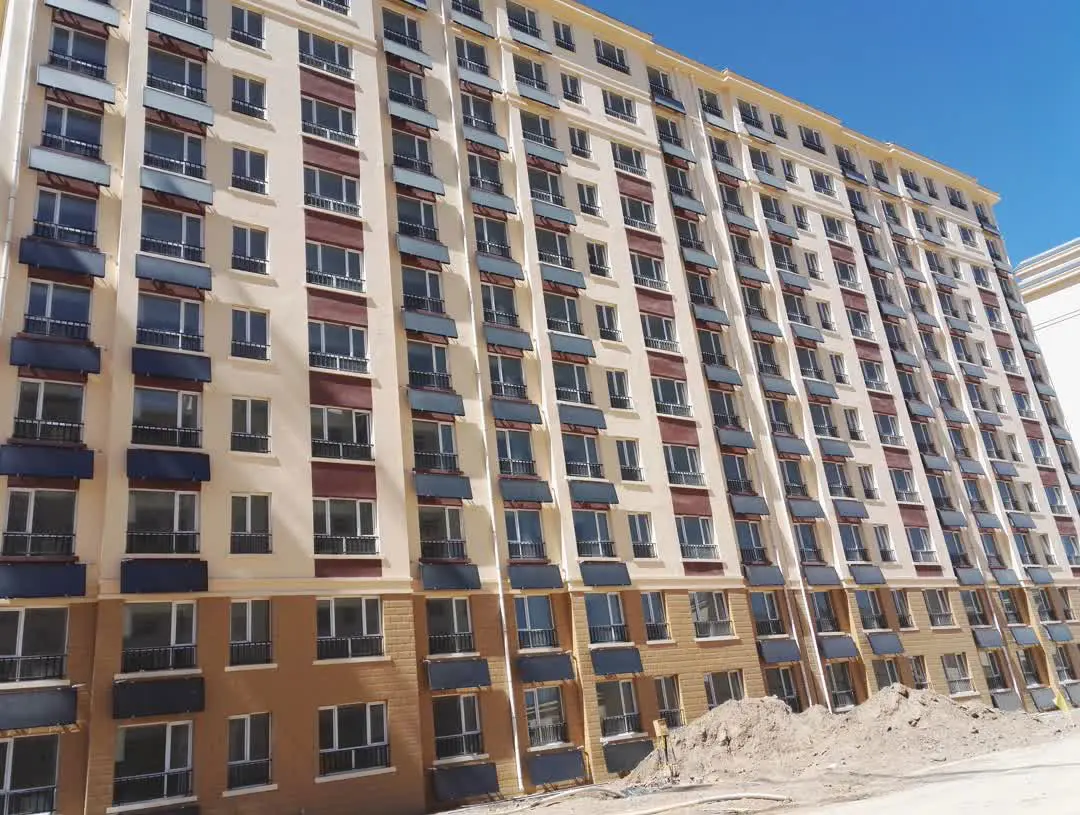

Wall-Mounted Solar Hot Water System for a 1,031-Household High-End Community in Zhongwei, Ningxia
One independent wall-mounted solar water heater per household — replacing centralized boilers and household electric or gas heaters — delivers stable hot water to 1,031 units without the peak-hour pressure drop and temperature swings typical of shared systems.
Project Background
Fuxingyuan Community is a high-end residential complex in central Zhongwei City, Ningxia, comprising 1,031 households. Zhongwei sits in one of China's highest-irradiation zones — a natural fit for distributed solar thermal — but the local baseline was still household electric and gas water heaters, plus a centralized boiler option that suffered from the usual shared-system problems: pressure drops at morning peak, temperature swings, and disputes over billing fairness.
The developer wanted a single hot water solution for the entire community that avoided both the OPEX burden of a centralized boiler plant and the resident-facing inconsistency of gas or electric water heaters. Wall-mounted solar units — one per household, with built-in electric backup — solved both problems while turning the community's green credentials into a marketable asset. Background on the product category is available in our guide on how to choose the correct solar water heater.
Client Challenges
Four operational and commercial constraints shaped the specification for a residential deployment at this scale.
Peak-Hour Pressure and Temperature Instability
Centralized boiler systems in comparable communities experience visible pressure drops between 06:00–08:00 and 20:00–22:00. For a high-end community, this is a resident satisfaction problem that shows up in reviews and resale value.
Individual Household Billing Fairness
Shared hot water systems make per-household cost allocation contentious. An independent unit per household resolves the billing conflict by design — each family pays only for its own consumption.
Winter Overcast + Sub-Zero Nights
Ningxia winters bring cold nights and multi-day overcast stretches. A solar-only unit without electric backup would produce cold showers at exactly the moment residents notice — the design had to eliminate that failure mode.
Space Constraint in High-End Apartment Layouts
Roof-tank rooftop solar heaters were rejected on aesthetic and structural grounds. Wall-mounted units on balconies or utility walls preserve the architectural cleanliness the developer had committed to buyers.
Solution Overview
The design places one independent wall-mounted solar water heater per household, with a built-in electric auxiliary that automatically supplements heat on low-irradiation days. Each unit runs on its own control loop — no cross-household dispatch, no shared plant, no communal failure mode. See our solar water heater product hub for the broader product line.
One Independent Unit Per Household
1,031 wall-mounted solar water heaters, one per household. Each unit is fully independent — solar collector, storage tank, controller, and electric backup all serve a single family. Zero cross-household service risk.
Built-In Electric Auxiliary Heating
Auto-activated when the tank falls below the user setpoint and solar cannot recover it within a defined window. Guarantees hot water availability through winter overcast periods without exposing residents to service failure.
Intelligent Setpoint Control
Each user sets a target temperature. The controller heats to setpoint, holds it, and resumes heating only on temperature drop. This eliminates the constant-cycle waste common in fixed-thermostat electric water heaters.
Full-Stack Safety Protection
Dry-run prevention, over-pressure release, and leak detection are built into every unit. Extended equipment life and eliminated fire/scald risk are direct outcomes — an important consideration in a high-density residential deployment.
System Configuration (Per Household)
Before vs After Comparison
Benchmarked against the two conventional options the developer evaluated: household gas/electric water heaters and centralized boiler heating.
| Metric | Household Gas / Electric | Centralized Boiler | Wall-Mounted Solar (Deployed) |
|---|---|---|---|
| Primary Energy Source | Gas or grid electricity | Gas or coal boiler | Solar primary + electric backup |
| Peak-Hour Pressure | Stable per household | Drops noticeably 06:00–08:00 | Stable per household |
| Temperature Stability | Stable | Variable at peak | Stable via setpoint control |
| Household Energy Cost | High and volatile | Fixed monthly fee | Low OPEX after CAPEX |
| Billing Fairness | Individual — fair | Shared — often contentious | Individual — fair |
| Safety Risk Profile | Gas leak, electric shock exposure | Boiler plant + shared piping | Multi-layer protection built in |
Performance Results
Measured across the first full year of community operation.
*Solar fraction range is a reference benchmark for wall-mounted units in Zhongwei-class irradiation zones (over 2,800 sunshine hours/year). Actual per-household performance varies with occupancy and consumption pattern.
Client Feedback
"The independent-unit design solved the two things residents complain about most in centralized systems: morning-hour pressure drops and unclear billing. Every family runs their own unit on their own setpoint, and the electric backup means no one has ever called about a cold shower — including through winter overcast weeks."
Planning a residential community, hotel apartment, or workforce housing hot water rollout? Get a per-household sizing outline, or explore our distributor and OEM partnership if you deliver residential solar hot water at scale.
Request a Similar Quote →Key Takeaways for Similar Projects
Four engineering and commercial lessons transfer directly to other residential and multi-unit solar hot water deployments.
One Unit Per Household Beats Centralized on Resident Satisfaction
For high-end residential, the ability to eliminate morning pressure drops and shared-billing disputes is worth more than the small efficiency gain of a centralized plant. Independent-per-household is the correct architecture above roughly 500 units.
Never Ship Without Built-In Electric Backup
A solar-only wall-mounted unit will produce cold showers during winter overcast — and residents will remember exactly that failure. Built-in electric backup is not a compromise; it is the condition of trusting solar as primary. See our solar water heater fundamentals for the design logic.
Standardize the Install Procedure Before Deployment
At 1,000+ units, installation variance kills project timeline. A standardized bracket, pipe route, and commissioning checklist across all households cuts installation time per unit and reduces post-move-in service calls. See our solar water heater sizing guide for pre-install specification logic.
Aesthetic Form Factor Matters for High-End Residential
Rooftop tank-and-collector units are functional but visually incompatible with high-end apartment architecture. Wall-mounted units on balconies preserve the facade and pass the developer's design review — a purely technical spec that ignores this fails on delivery.
Frequently Asked Questions
What is the payback period for a residential wall-mounted solar unit?
For a typical 3–4 person household in a high-irradiation zone like Zhongwei, wall-mounted solar with electric backup recovers the CAPEX difference over a household gas or electric water heater in roughly 4–6 years through electricity or gas bill reduction. Equipment life is 12–15 years, giving 6–9 years of net positive OPEX after payback.
How is the sizing done for one household?
Standard household sizing assumes 40–50 L of hot water per person per day at 45°C. A 3–4 person household typically maps to a 120–200 L tank with 1.5–2 m² of collector. The formal methodology is in our how to size a solar water heater guide.
How does the electric backup avoid becoming the primary source in winter?
The controller only fires the electric element when the tank temperature falls below setpoint and solar has not recovered within a defined recovery window. In Zhongwei-class irradiation, electric backup typically runs only 10–20% of annual hours, concentrated in December–February overcast stretches.
Can the wall-mounted unit be installed on a balcony without freezing risk?
Yes, when specified correctly. Insulated piping, integrated antifreeze protection, and continuous circulation control during cold weeks are standard. Balcony installation is common across northern China. For deeper design detail see our note on freeze protection for solar hot water systems.
Does SoletkSolar supply wall-mounted units for overseas residential projects?
Yes. The wall-mounted category exports well to Southern Europe, the Middle East, North Africa, and Latin America, where residential balcony installation is culturally accepted and solar irradiation is strong. Product specification is adjusted for local water pressure norms, voltage, and grid frequency.
